LSR vs Plastic Injection Molding Tools: Thermal Logic Differences

In custom component manufacturing, procurement managers and hardware engineers often try to leverage their plastic injection molding experience when developing Liquid Silicone Rubber (LSR) parts. However, projects that treat silicone tooling like traditional thermoplastic molds frequently encounter severe issues, such as premature material curing inside runners, flashing along parting lines, trapped air bubbles, and distorted geometry.

Engineering teams often ask during initial DFM (Design for Manufacturability) reviews: “Why do plastic mold design rules fail when applied to liquid silicone rubber parts?”

The fundamental reason lies in a complete reversal of thermodynamic behavior. Thermoplastic molding relies on a “hot material, cold mold” process, whereas LSR injection molding operates on a “cold material, hot mold” cross-linking mechanism. Understanding this inverse thermal logic is critical for specifying custom LSR tooling, cold runner systems, and micro-venting features.

1. The Inverted Thermal Logic: Cold-to-Hot vs. Hot-to-Cold

The core physical contrast between thermoplastics and liquid silicone rubber determines how raw material enters the cavity and solidifies into a finished part.

                    THERMAL PROCESS CONTRAST

  [ Thermoplastic Molding: Hot-to-Cold Process ]
  └── Heated Barrel (200°C–300°C) ──> Chilled Mold Cavity (20°C–80°C) ──> Solidifies by Cooling

  [ LSR Silicone Molding: Cold-to-Hot Process ]
  └── Chilled Barrel (20°C–40°C)  ──> Heated Mold Cavity (160°C–220°C) ──> Vulcanizes by Heating

Thermoplastics: Melt, Inject, and Chill

Traditional polymers (such as ABS, PC, or Nylon) are fed into a heated barrel ( $200^\circ\text{C}$ – $300^\circ\text{C}$ ) to form a viscous melt. This hot liquid is injected into a cooled mold ( $20^\circ\text{C}$ – $80^\circ\text{C}$ ), where it solidifies as it loses heat.

Liquid Silicone Rubber: Mix, Inject, and Vulcanize

LSR consists of a two-component liquid formulation (Part A and Part B) mixed at ambient temperature. The compound is kept cool inside a temperature-controlled barrel ( $20^\circ\text{C}$ – $40^\circ\text{C}$ ) to prevent premature cross-linking. When injected into a heated mold cavity ( $160^\circ\text{C}$ – $220^\circ\text{C}$ ), thermal energy triggers platinum-catalyzed vulcanization, curing the liquid into an elastic solid.

Applying thermoplastic mold logic to LSR is like wearing a winter parka to run a marathon in the summer heat: the thermal control system operates in direct conflict with the material’s physical requirements.

2. Tooling Differences: Cold Runner Systems, Viscosity, and Micro-Venting

Because LSR exhibits low viscosity during initial injection before rapidly solidifying upon contact with heat, silicone mold construction requires distinct engineering considerations.

Cold Runner Systems vs. Hot Runners

Thermoplastic hot runners maintain elevated temperatures to prevent resin from freezing in the feed channels. In contrast, LSR tooling utilizes water-cooled cold runner systems equipped with shut-off needle valves. These chilled channels maintain the silicone compound below $40^\circ\text{C}$ until it enters the heated cavity, preventing material from curing inside the runner channels and eliminating raw material waste.

Ultra-Low Viscosity and Micro-Venting (0.005mm – 0.008mm)

Before cross-linking, unvulcanized LSR flows almost like water. While thermoplastic molds accommodate air venting gaps of $0.02\text{mm}$ to $0.05\text{mm}$ without flashing, LSR will flash through gaps larger than $0.005\text{mm}$ ( $5\ \mu\text{m}$ ). Consequently, LSR molds demand high-precision CNC machining, strict surface parallelism, and micro-venting channels paired with vacuum extraction systems to prevent burn marks and trapped air.

Volumetric Shrinkage and Thermal Expansion

Thermoplastics shrink inwardly as they cool inside a cold mold. LSR expands during thermal vulcanization inside the hot mold, then shrinks by approximately $2.5\%$ to $3.0\%$ as it cools down to room temperature after ejection. Tooling designers must compensate for these compound thermal expansion and contraction ratios to ensure tight dimensional tolerances.

3. Engineering Comparison Matrix: Thermoplastic vs. LSR Tooling

Engineering Metric	Traditional Plastic Injection Molding	Liquid Silicone Rubber (LSR) Molding
Material State at Entry	High-temperature molten liquid	Low-temperature two-part fluid mixture
Barrel Temperature	Heated ( $200^\circ\text{C}$ – $340^\circ\text{C}$ )	Chilled / Water-cooled (2 $20^\circ\text{C}$ – $40^\circ\text{C}$ )
Mold Cavity Temperature	Cooled via water channels ( $20^\circ\text{C}$ – $80^\circ\text{C}$ )	Electrically heated ( $160^\circ\text{C}$ – $220^\circ\text{C}$ )
Material Curing Dynamic	Physical solidification via cooling	Chemical cross-linking via thermal vulcanization
Runner System Type	Cold runners or heated hot runners	Chilled water-cooled cold runner systems
Venting Gap Tolerance	$0.02\text{mm}$ to $0.05\text{mm}$ (Standard)	$0.003\text{mm}$ to $0.008\text{mm}$ (Micro-venting required)
Flash Propensity	Low to moderate	Extremely high (Requires ultra-tight steel shut-offs)

4. DFM Considerations for Sourcing LSR Components

When transitioning a part from thermoplastic to silicone, procurement officers and engineering leads should adapt their design parameters early in the project life cycle:

Avoid Uniform Wall Thickness Rules

While thermoplastic parts rely on rigid wall-thickness symmetry to avoid sink marks, elastic LSR parts offer more flexibility. However, sharp transitions between thin and thick sections should still be radiused to prevent thermal stress concentrations during thermal curing.

Account for Mechanical Ejection of Flexible Parts

Unlike rigid plastic parts that require complex slide mechanisms for minor undercuts, flexible silicone components can often be stretched over minor mold cores during automated mechanical or air-assist ejection, simplifying mold design and lowering tool costs.

Specify Surface Finish and Flash Tolerances Early

Given LSR’s low viscosity, defining acceptable flash limits (e.g., maximum $0.05\text{mm}$ along secondary parting lines) on engineering drawings ensures mold makers incorporate tight shut-off land surfaces and vacuum venting from the start.

Summary & Custom Injection Molding Services by WIN WIN

Designing tooling for Liquid Silicone Rubber requires a complete shift from thermoplastic molding practices. Because LSR enters as a cool fluid and vulcanizes inside a hot mold, silicone tooling relies on chilled cold runner systems, micro-venting down to $0.005\text{mm}$ , and precise thermal isolation between the chilled manifold and heated cavity plates. Recognizing these material differences prevents costly tooling modifications, reduces flash, and speeds up production setup.

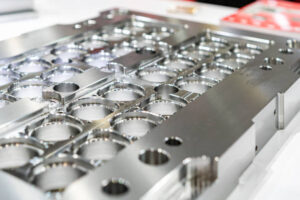

Partner with WIN WIN for Precision Plastic and LSR Injection Molding

At WIN WIN, we deliver custom tooling design, precision plastic injection, and multi-material molding solutions for global medical, automotive, consumer electronics, and industrial component manufacturers.

Integrated Plastic & LSR Expertise: Complete engineering capability spanning complex engineering plastics, high-precision Liquid Silicone Rubber (LSR), and two-shot (2K) overmolding.
In-House Tooling & Advanced DFM Analysis: In-house CNC toolmaking, optical mold inspection, and detailed DFM simulation to optimize flow, venting, and thermal balance before steel cutting.
Strict Quality Assurance: Certified manufacturing facilities adhering to ISO 9001 quality management, delivering consistent dimensional tolerances and clean, flash-free component production.

Avoid tooling pitfalls on your next silicone project. Contact the custom injection molding team at WIN WIN today to submit your 3D CAD files for a DFM evaluation and technical quotation!
